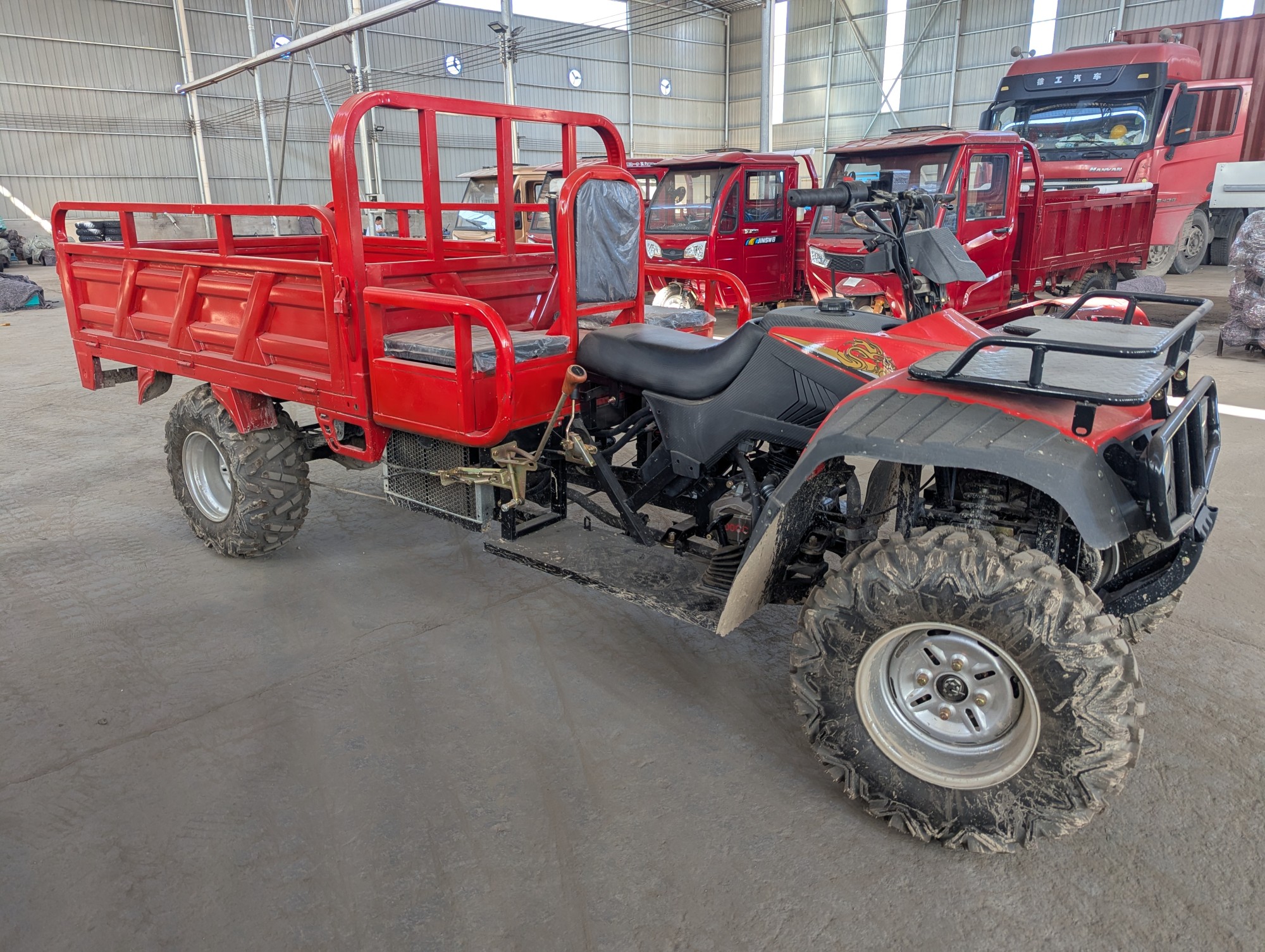

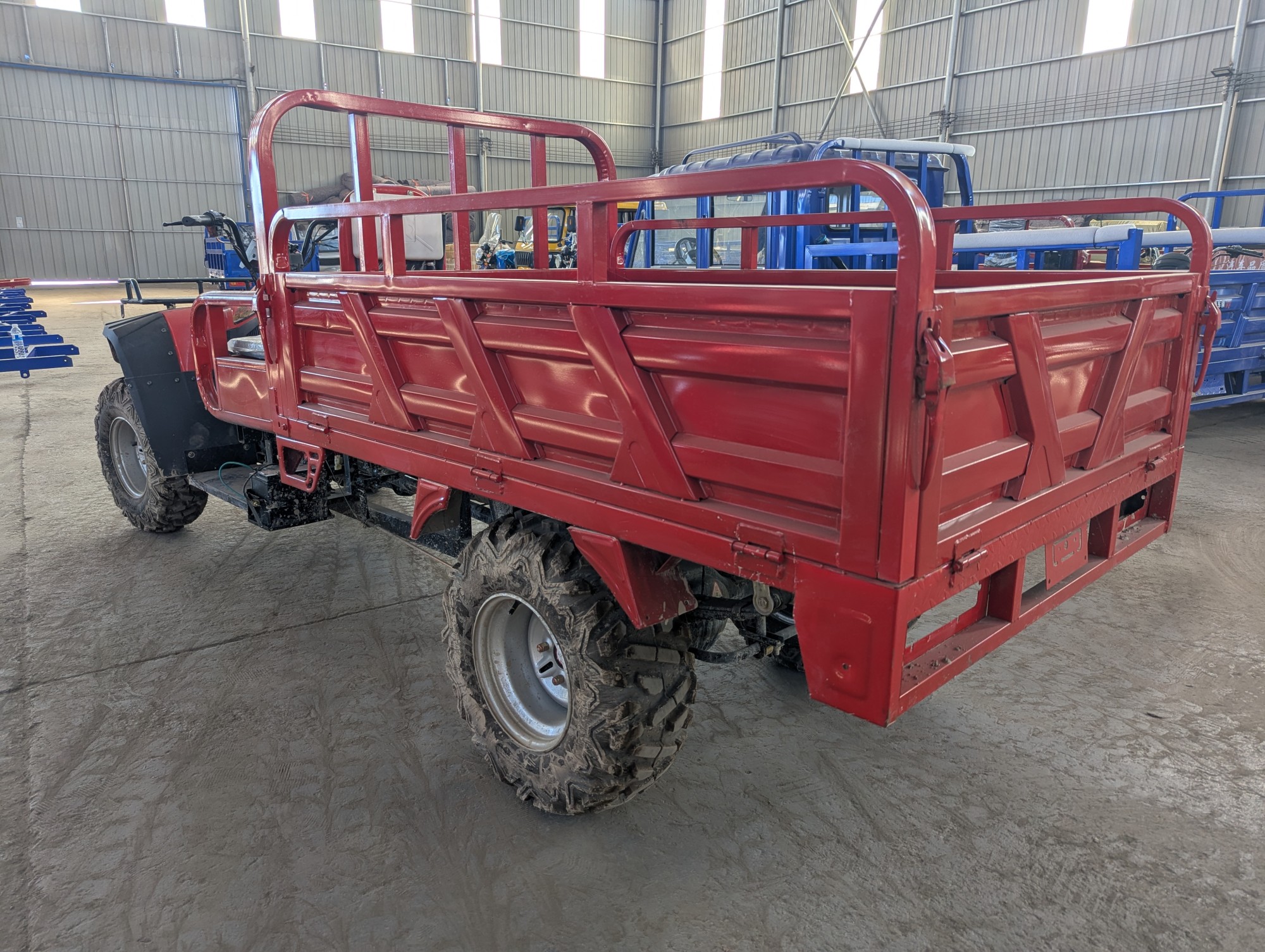

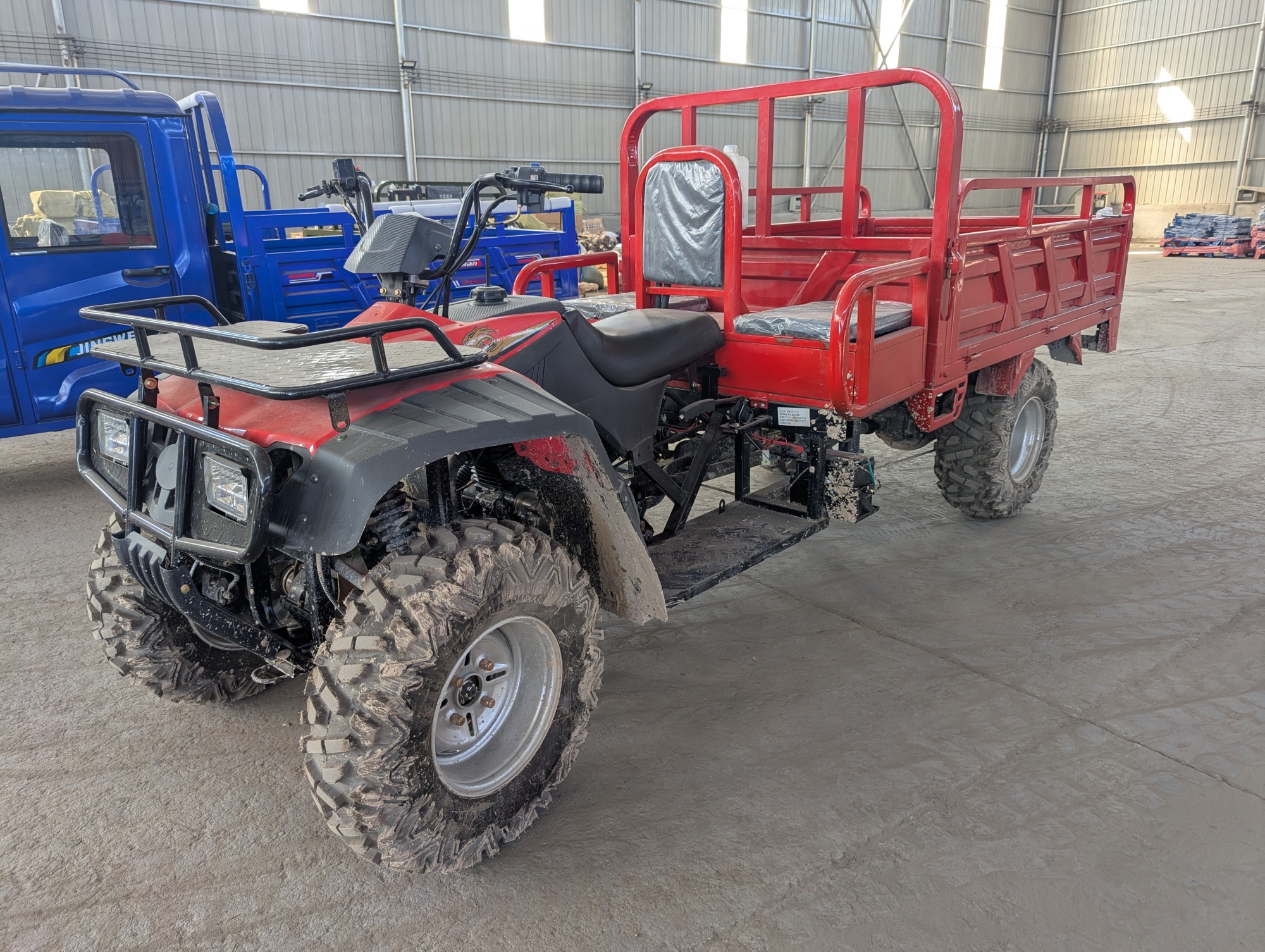

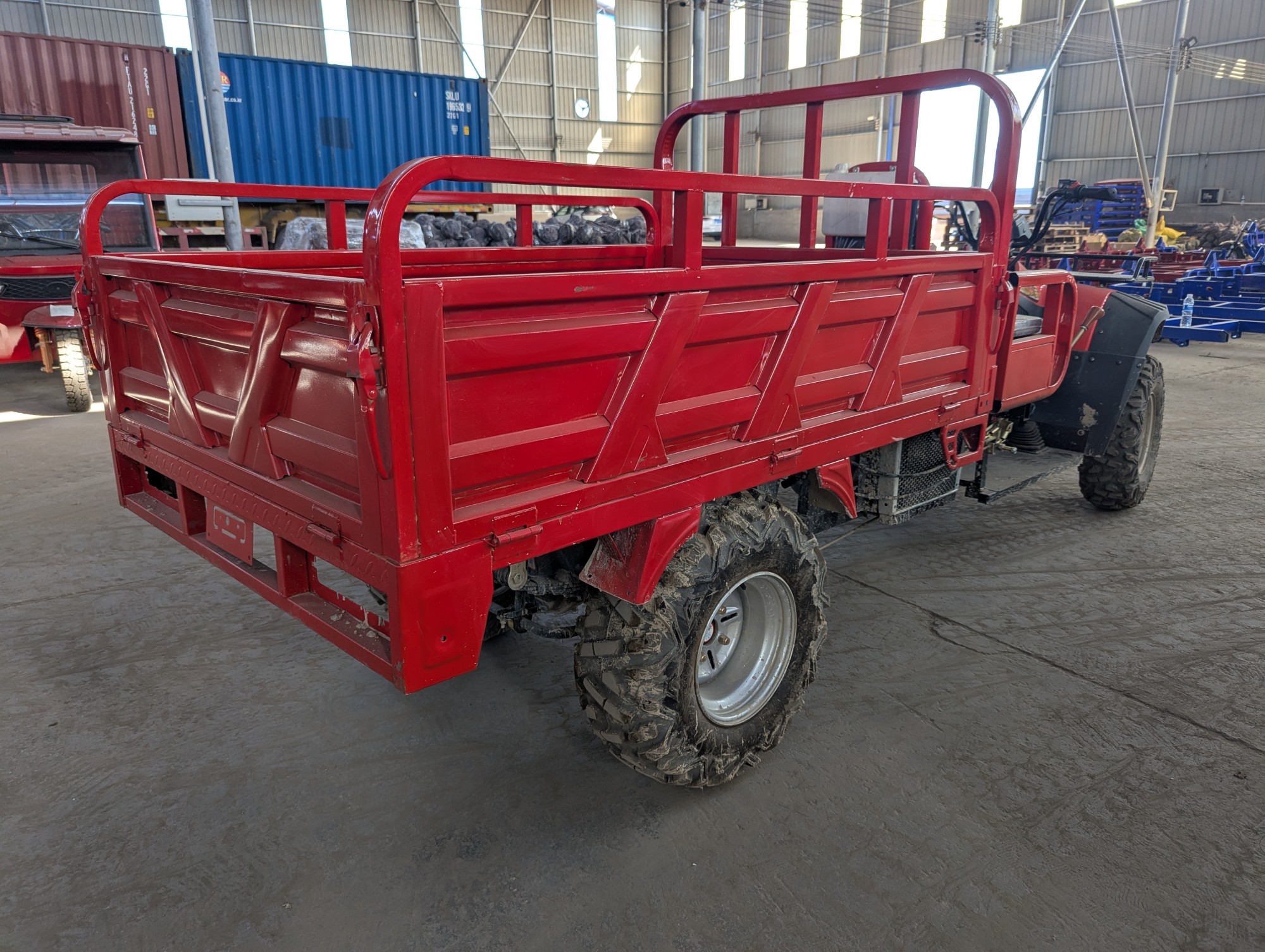

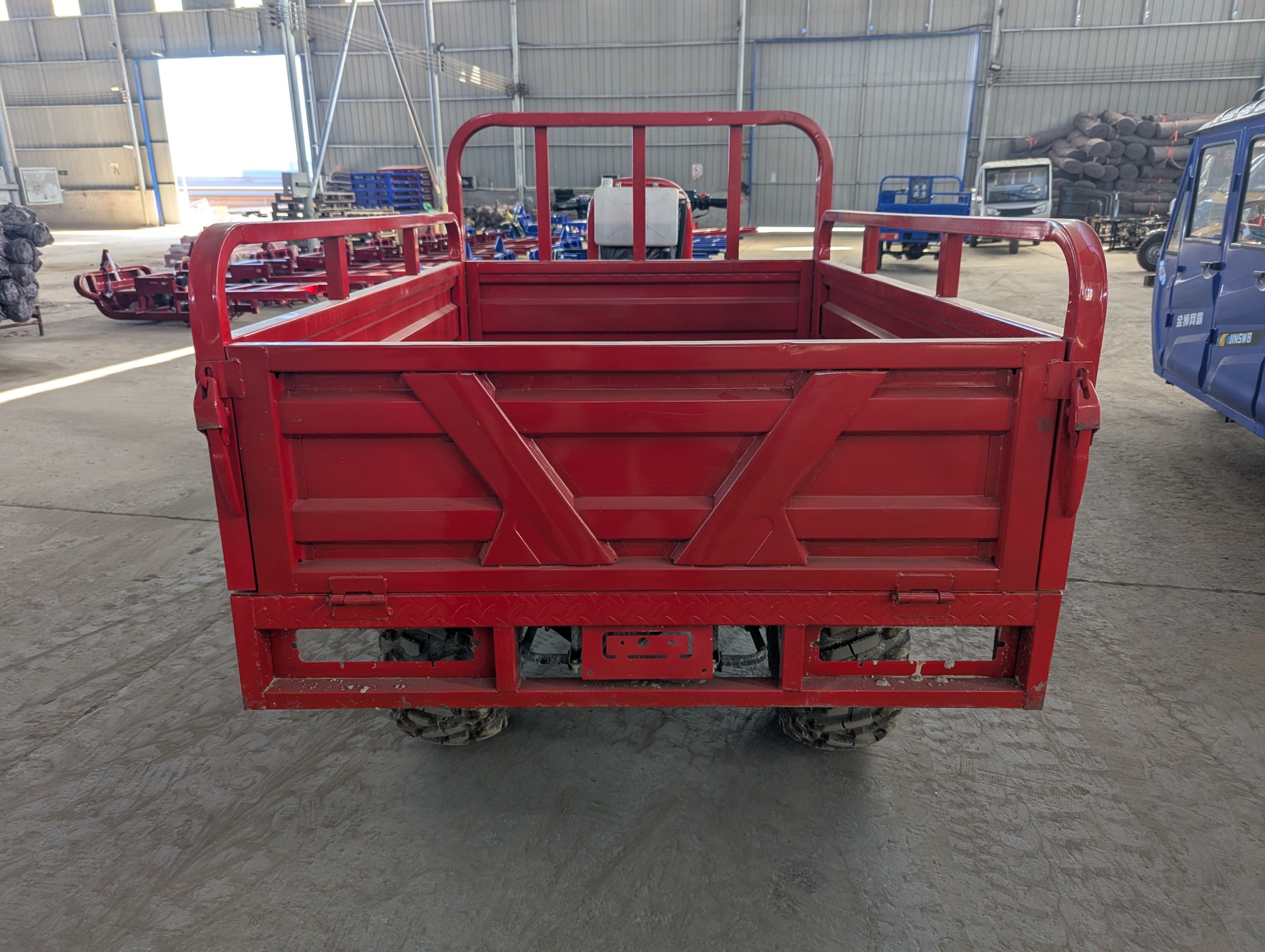

Beach Vehicle – Cargo Type 300ST

Model name

Beach Vehicle – Cargo Type 300ST

L×W×H（mm）：

3720×1300×1380

Wheelbase（mm）：

2350mm

Rear track（mm）：

前：800mm/后:900mm

displacement（ml）：

300

Engine type：

170MM

Start model：

电启动

Rated power（Kw/r/min）：

12.5Kw /6500r/min

Max torque（N.m/r/min）：

21N.m/4500 r/min

Max speed（km/h）：

60Km/h

Min ground clearance（mm）：

180mm

Loading Capacity（kg）

750KG

Min fuel consumption：

≤4.1L/100km

Ignition Mode

CDI

Fuel tank capacity（L）：

12L

Fuel model：

汽油

Driving model：

轴传动

driving mode

四驱

Gear-changing model：

脚变档+倒挡

Front Disc Brakes

碟刹 Disc Brakes

Rear Brake

鼓刹drum brake

Front suspension

摇臂、机械减震

Rear suspension：

钢板弹簧

Front Tires

AT25×8-12

Rear Tires

AT25×10-12

Carriage style：

2m*1.3m

Chassis Frame

整体式车架

operational type

手把式

Seat Hight（mm）

760mm

Configuration: Jin Zhan 300 water-cooled level 12, four-wheel drive, with front cargo bumper, integrated chassis, front suspension single swing arm, mechanical shock absorption, rear suspension steel leaf spring, front disc brake rear drum brake, dedicated high power (with sub-transmission) rear axle 220 hub without differential, tires front AT25×8-12 rear AT25×10-12, cargo box cold plate engineering bucket 340 2000×1300mm, 60W aluminum-plastic radiator, independent plastic auxiliary water tank, 28A dry battery.
