Dudu car-Passenger and cargo dual-use

Model name

Dudu car-Passenger and cargo dual-use

 parameter

 engine

Golden Lion 200 water cooled

Bowstring board

Five pieces of thickened bow plates

 pigment

Yellow (color can be customized)

 shock absorption

430 hydraulic thickened shock absorber

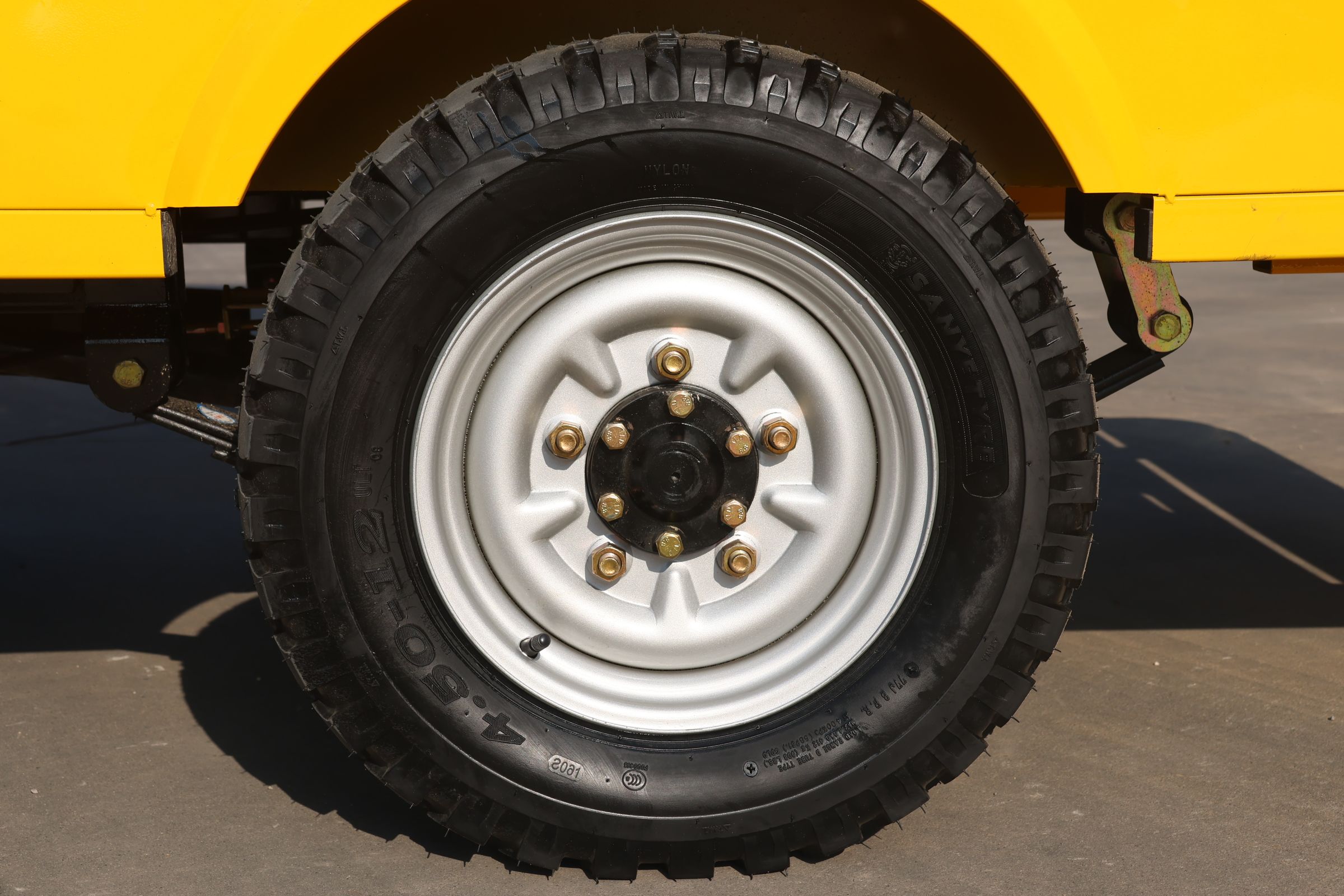

 tyre

450-12 tires can be swapped front and back

Start battery

12V9A

 configure

Car body dimensions

“Carriage” length 1.8m “carriage” width 1.3m “carriage” inner height 1.33m

 running speed

60 km/h

Vehicle exterior

Car body sheet metal acid washing phosphating electrophoretic coating, frame high-temperature paint application

 frame

4*8 thickened two main beams through the lifting ears with side bend reinforcement and multiple reinforcement points

 metal plate

Integrated stamping type (automotive stamping)

 transmission shaft

Forged drive shaft

 the light of a lamp

High brightness lens LED headlights

Reverse gear

200

 starting mode

Electrical start-up

Vehicle cable

National standard truck cable

 rear axle

The full suspension power-assisted rear axle has high and low speeds

 seat

Thicker sponge car seats

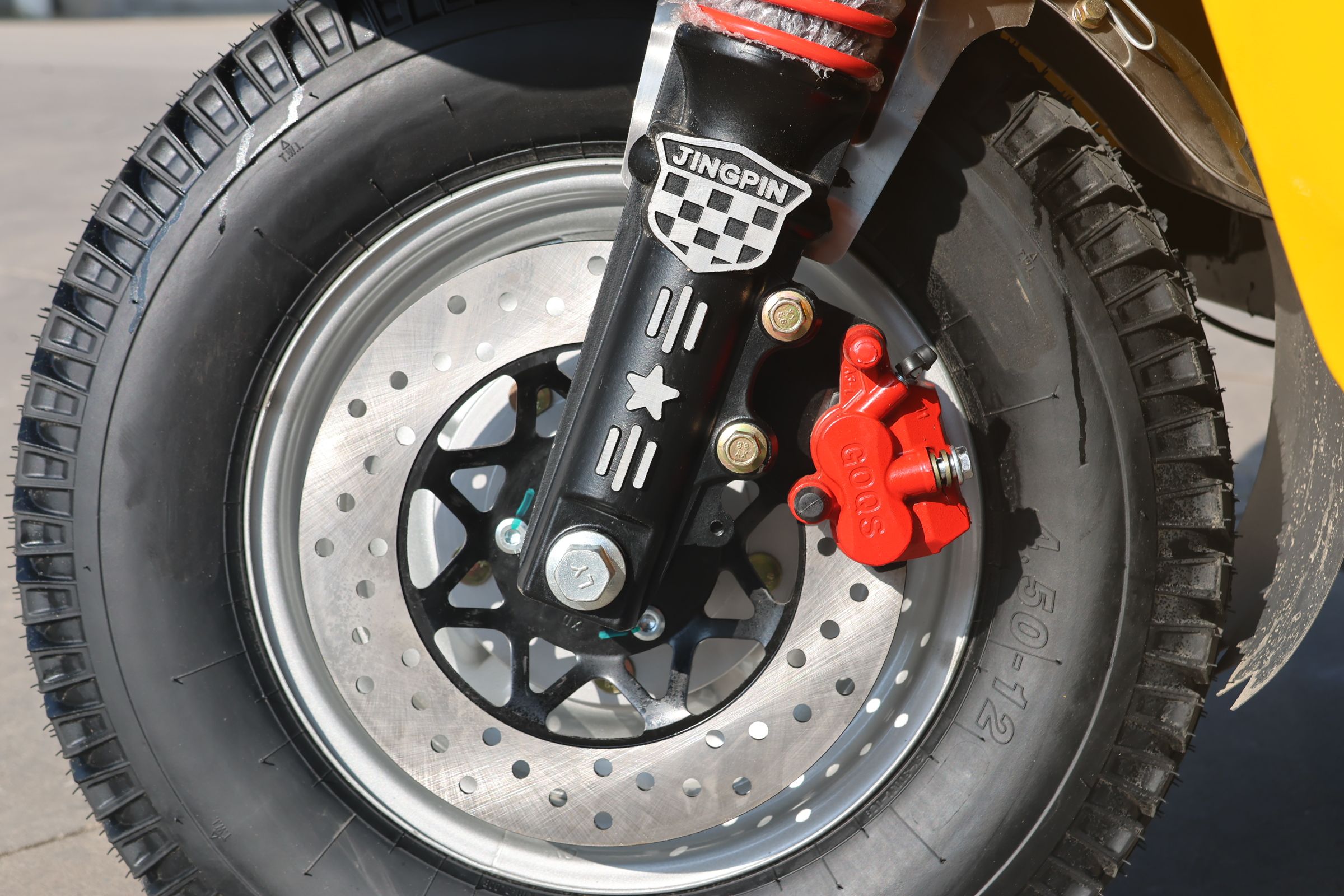

 brake assembly

Front disc brake rear hydraulic brake

Vehicle quality

Around 500kg

 fuel tank

25L increased fuel tank

 capacity tonnage

Around 1000Kg

 suona

Single horn

 mode of operation

Brake, steering wheel optional

 configure

Parking camera, LCD dashboard, radio, rear footrest, primary and secondary water tanks

 configure

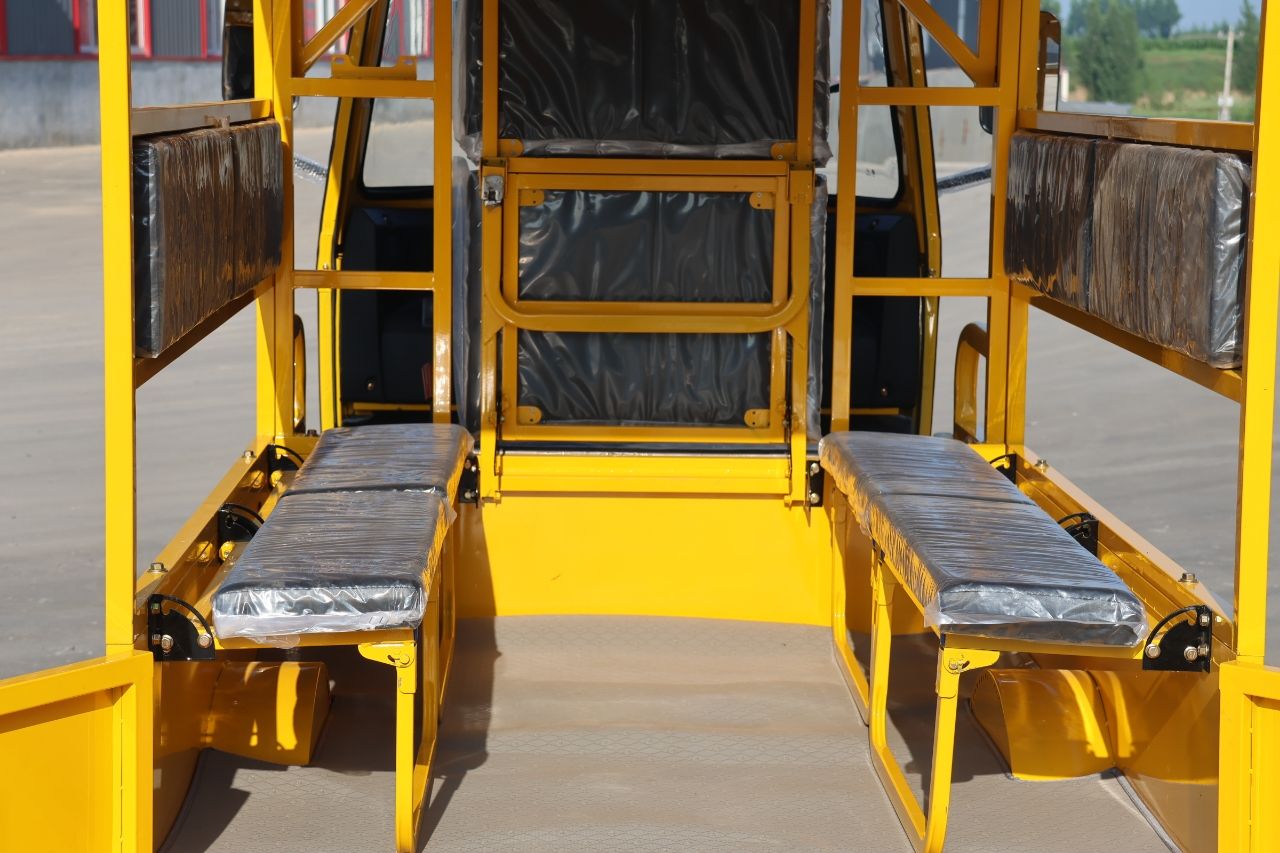

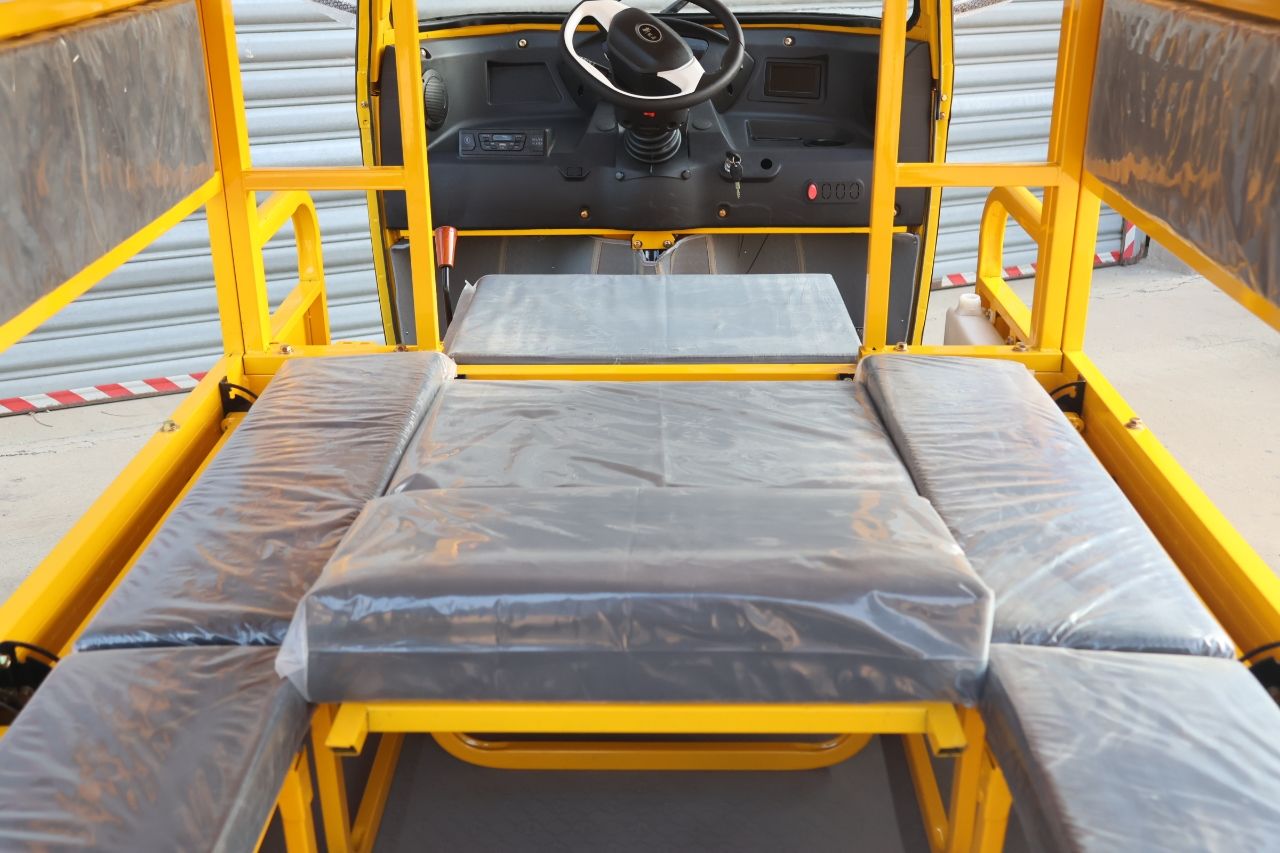

Eight-seat (driver excluded) folding seats, dual-purpose vehicle with driver’s seat and adjustable seating

Number of cabinets

The 40HQ full disassembly (CKD) can hold 28 units
