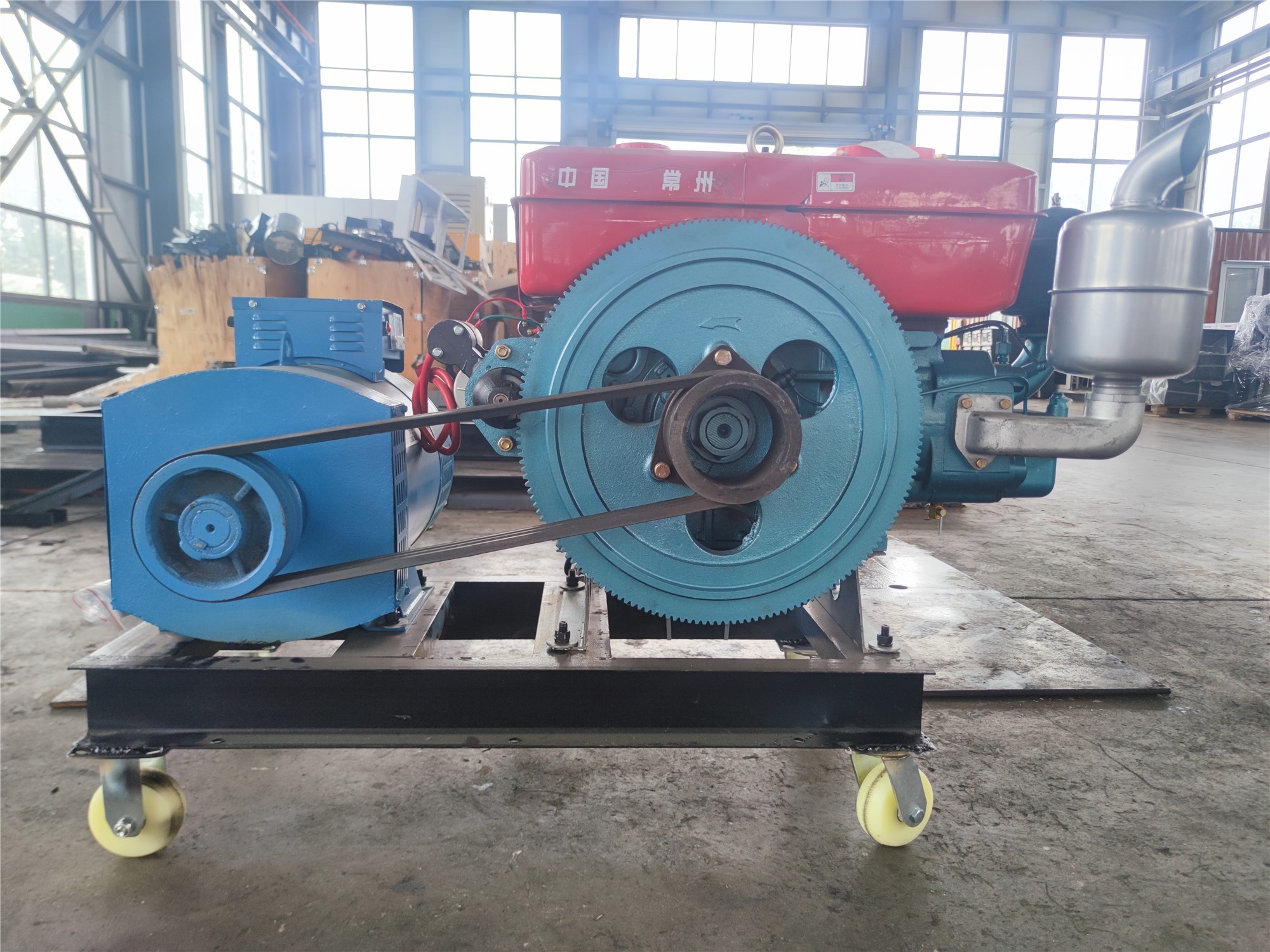

Changxing Diesel Generator ZS1115M

Changxing Diesel Generator ZS1115M

Type: Single-cylinder, horizontal, four-stroke

Cooling method: Evaporative water cooling

Combustion method: Direct injection

Lubrication method: Combined pressure and splash

Bore * Stroke (mm): 115 * 115

Power output method: Flywheel end output

Compression ratio: 17 ± 1

Starting method: Hand crank start / Electric start

Power at 1 hour KW/r/min: 16.2 / 2200

Net weight (KG): 185 (hand) / 203 (electric)

Power at 12 hours KW/r/min: 14.7 / 2200

Dimensions (mm): 858*450*699 (hand) / 955*450*699 (electric)

Fuel consumption rate: ≤ 242.1

Base mounting size (mm): 395*156

Oil consumption rate: ≤ 2.72

Battery generator (starting panel): Optional

Note: Be sure to add gasoline engine oil before use. Manual measurement may have an error of 1-2 cm; please refer to the actual product received.
