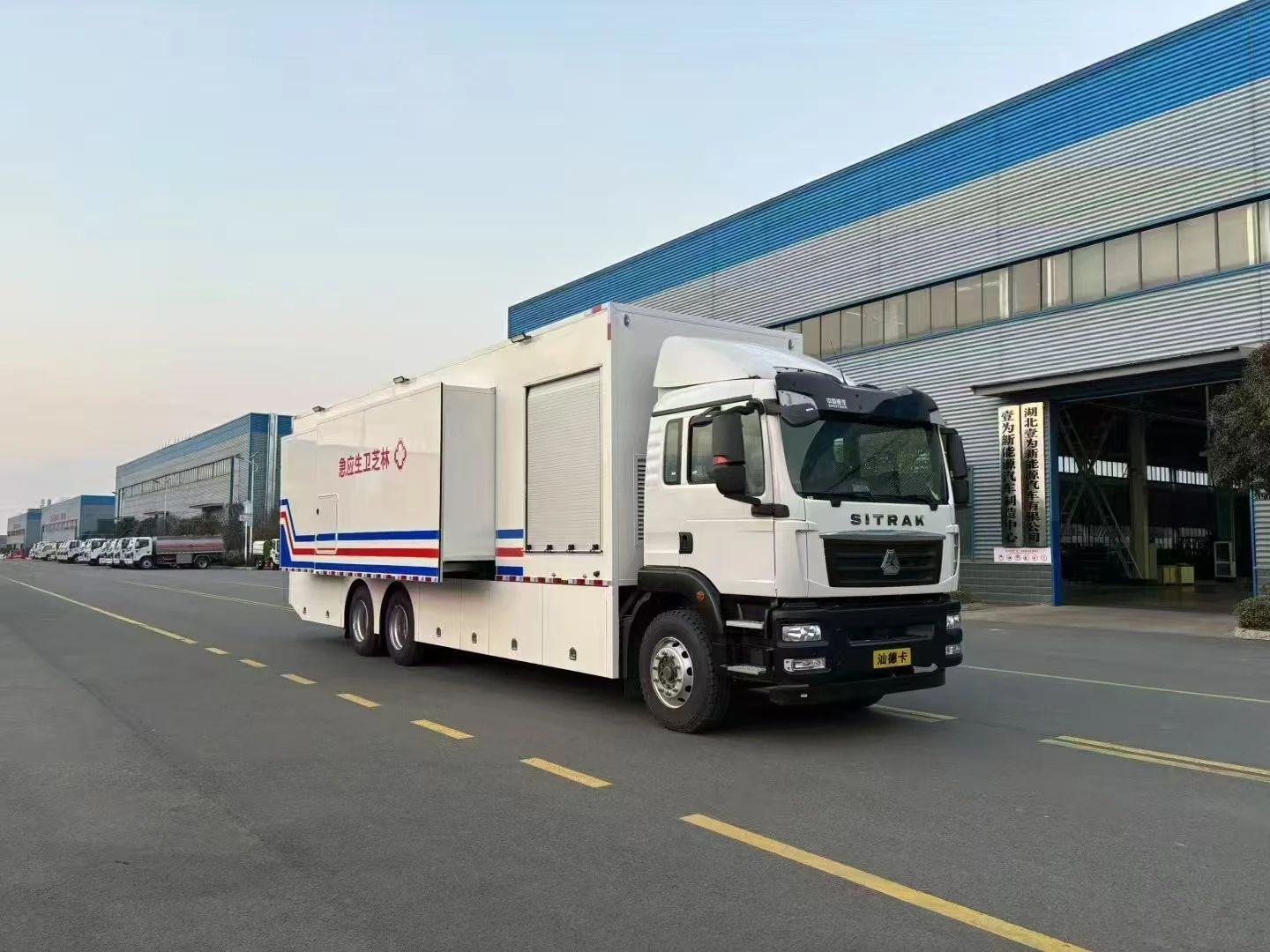

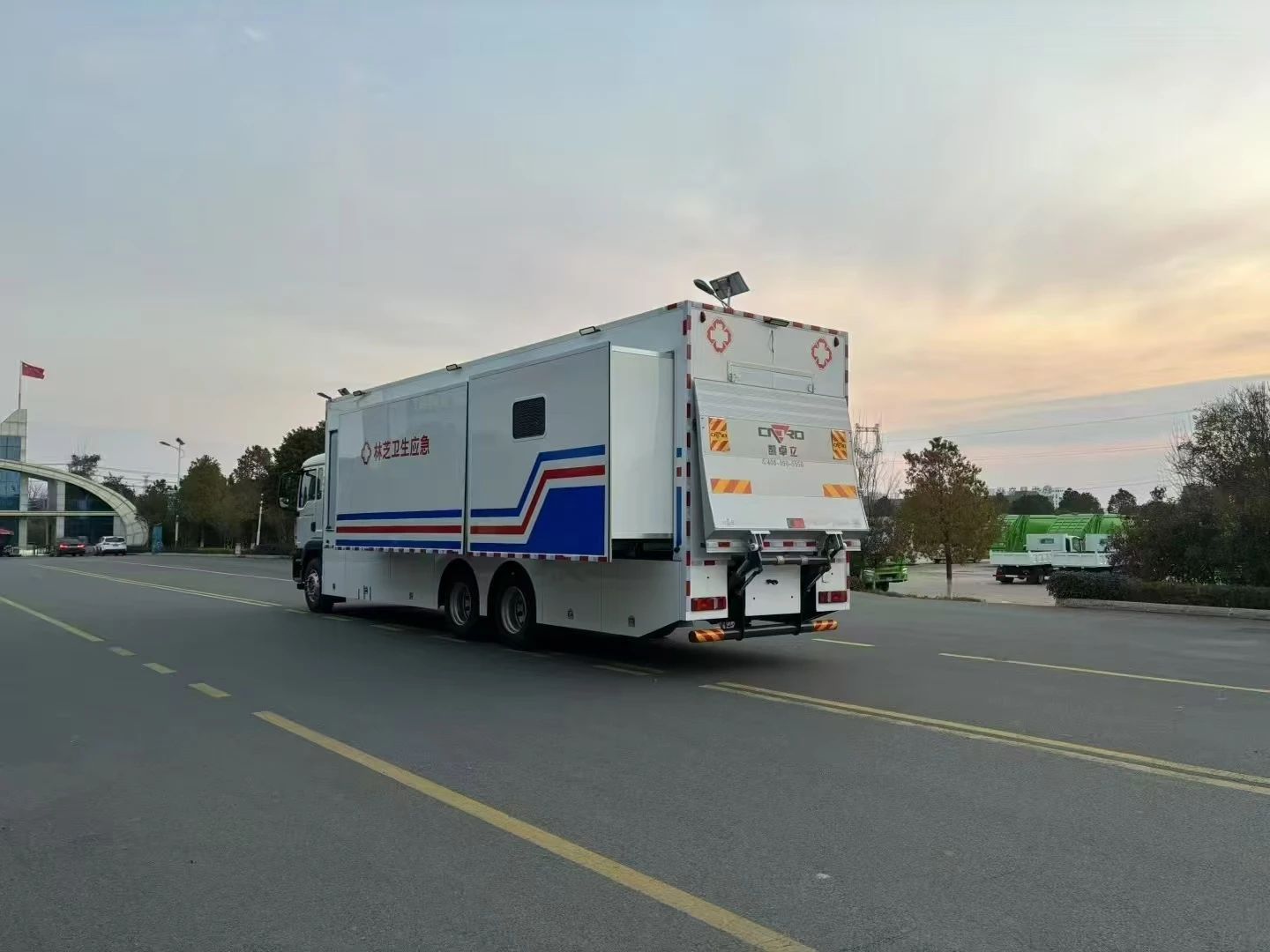

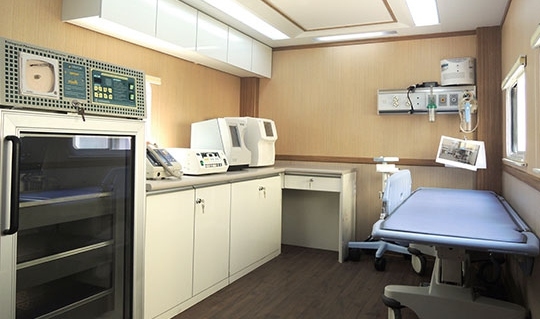

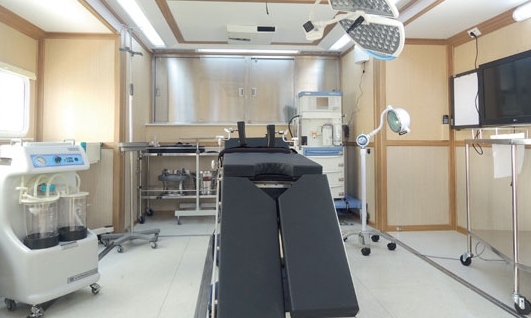

Medical high-end mobile surgical vehicle
CLH5200XSSZ6 surgical trolley Medical trolley series high-end mobile surgical trolley
The mobile operating vehicle is an operating room for medical rescue. It is equipped with a comprehensive operating table, anesthesia ventilator, desktop rapid steam sterilizer, surgical shadowless lamp, monitor, multi-functional surgical flushing machine, defibrillator monitor, intramedullary injection system, micro-infusion pump and other medical equipment and instruments, and then installed with auxiliary devices such as oxygen supply system and air disinfection device for early surgical treatment or emergency surgery. The operating vehicle adopts hydraulic expansion mode, and the compartment is divided into preoperative preparation area and operating area, and equipped with corresponding medical instruments and equipment. The vehicle air conditioning purification system is equipped in the operating area, and the operating area realizes horizontal unidirectional airflow movement. The air cleanliness of the operating area can reach 10,000 levels.
Performance characteristics
- Efficient and convenient
The medical surgical vehicle adopts the first work disinfection isolation cabin in the country, which effectively controls the ambient temperature and aseptic management of the work area, and is the first to have an additional toilet in the work area. It improves the self-management and work efficiency of the staff and can provide a circular disposal space.
- Fully functional
Equipped with multifunctional operating table, operating lamp, anesthesia ventilator, defibrillator, multi-parameter monitor, multifunctional high-frequency electric knife, multifunctional flushing machine, desktop high-pressure sterilizer, autologous blood recovery machine, injection pump, infusion pump, orthopedic drilling and sawing system, surgical instrument package, film viewing lamp, aspirator and other medical equipment and oxygen supply system and various efficacy guarantee module interfaces.
- Move the hospital to the site
The operating vehicle has the functions of early surgical treatment and emergency surgery, and can perform tracheotomy, emergency vascular hemostasis, chest drainage, hepatosplenic rupture and bleeding, fracture positioning and treatment, gynecological examination and delivery.
Main technical parameters and configuration
| Mobile surgical vehicle | |
| Vehicle model | Chengli Heavy Industry CLH5200XSSZ6 model |
| Overall dimensions (mm) | 11745*2496*3035 |
| Fuel type | Diesel |
| Curb weight (kg) | 7650 |
| Wheelbase (m) | 5775+ 1400 |
| Total mass (kg) | 26000 |
| Displacement (ml) | 7360 |
| Power (KW) | 257 |
| Emission standard | CB17691-2018 National V |
| Tire specifications | 295/80R22.518PR |
Detailed configuration
| Equipment | parameter |

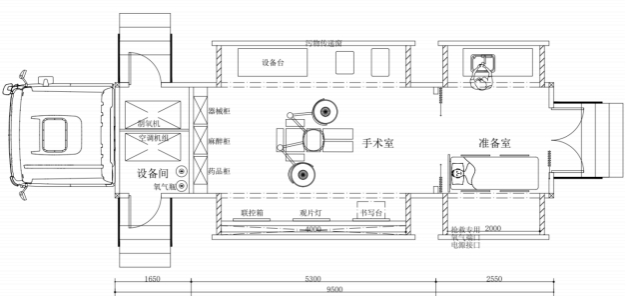

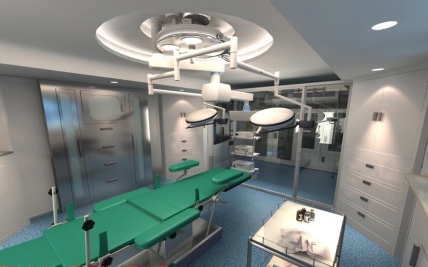

| Carriage | The carriage adopts a large-plate double-sided expansion structure, which can automatically expand and collapse through remote control of the hydraulic mechanism. The maximum expansion depth on each side of the operating area is ≥650mm, the maximum expansion depth of the resuscitation area is ≥950mm, and the maximum expansion depth of the preparation area is ≥600mm. This not only expands the usable area of the operating cabin, but also maintains the original vehicle’s passing capacity. |
| Extension compartment system | Double-sided expansion, the width of the medical cabin after expansion is ≥3850mm, and the internal net height is ≥1980mm. |
| Onboard oxygen supply system | The supply system consists of oxygen cylinders (40L*4), an oxygen concentrator, an automatic gas switching box, an oxygen supply pipeline system and a gas terminal. The system has the following characteristics: ① When the gas in the gas cylinder is less than the set minimum value, it can automatically switch to the spare gas cylinder and automatically send out an alarm signal; ② There is no need to close the system valve when replacing the gas cylinder; ③ The inlet and outlet of the two oxygen pressure reducers are installed with special filter elements to minimize the entry of impurities into the valve; ④ The system has been tested for pressure resistance and is safe and reliable. |
| Floor structure | When the compartment is fully expanded, the floor is flat without any steps to prevent falls. |
| Support system | The whole vehicle has four supports, and the single bar support is ≥8T. |
| Hydraulic lift tailgate system | The tailgate is made of aluminum alloy, with dimensions (length × width/mm) ≥2000 × 1800, maximum load-bearing ≥ 1000kg, 304 stainless steel and inverted safety guardrails are set on both sides |
| Waterway system | Automatic high-speed hand dryer, induction hand sterilizer, induction/pedal hot and cold integrated wash basin (304 stainless steel) |
| Air purification system | The cleanliness level of the whole vehicle is not less than Class 100,000, and it is composed of three-stage air filters, namely, primary air filter, intermediate air filter and final high-efficiency air filter connected in series. |
| Air conditioning | Professional constant temperature and humidity purification air conditioning. |
| Onboard generator set | The maximum supported option is a 10kw ultra-quiet generator, which supports ground operation to prevent the vehicle body from vibrating. |
| Cable reel | 30m three-core soft copper cable with electric reel |
| Specialized channel | The vehicle is equipped with a dedicated channel for doctors and patients, and the doctor’s channel is set with a password/fingerprint door lock |
| Medical thermostat | Medical constant temperature box with volume ≥50L and temperature of 2℃-8℃ is mainly used for storage and transportation of medicines and reagents, refrigeration and insulation of vaccines and blood, etc. |
| Electric sliding door | Foot-sensing |
| Stretcher bed | 1. High position (mm) ≥ 1900 × 550 × 920 2. Low position (mm) ≥ 1900 × 550 × 260 |
| Infusion rail | 1800mm×2, distributed on both sides of the air supply ceiling above the operating table |
| Infusion pump | Improve the flow rate and volume control accuracy of drug administration, and expand the range of drug administration flow rate; use various alarm functions of the infusion pump (such as pipeline bubbles, needle blockage, venous needle running, pipeline fatigue, dripping, etc.) to reduce labor intensity, improve clinical safety, and reduce nursing manpower. |
| LED flat purification lamp | 48W≥2 lamps, 38W≥8 lamps |
| Intelligence control panel | LCD touch screen |
| Camera | A total of 4 cameras are installed in the operating room, preparation area, and recovery area. To ensure privacy, the cameras support shielding function |
| Instrument/anesthesia cabinet | The innermost part of the vehicle is equipped with an instrument cabinet and anesthesia cabinet. The entire cabinet is made of 304 stainless steel without sharp edges and corners. The cabinet is equipped with a side sliding door with explosion-proof glass installed on it for easy observation of the items inside. |
| Surgical shadowless lamp | Shadowless lamp and ventilation ceiling are integrated with each other |
| Viewing lamp | The film viewing light is designed to be embedded and is located above the information panel and in the middle of the anesthesia and instrument cabinet. |
| Transfer wearer | In order to facilitate the emergency replenishment of medicines, plasma and other supplies, the operating vehicle is equipped with a two-way interlocking transfer window with a maximum aperture of 600 × 600mm. |
| Multi-function electric operating table | It adopts electric lifting, compact design, solid structure, and can meet the needs of head, neck, chest, abdomen, perineum and limbs surgery, obstetrics and gynecology, urology, ENT and other surgeries. The position adjustment is easy to operate, fast and safe. |
| Anesthesia ventilator | Inhalation anesthesia is a process in which anesthetic drugs are delivered into the patient’s alveoli through a mechanical circuit, forming a partial pressure of anesthetic gas. After diffusing into the blood, it directly inhibits the central nervous system, thereby producing the effect of general anesthesia. |
| Defibrillator | A medical device that uses a strong pulse current to pass through the heart to eliminate arrhythmias and restore sinus rhythm. It is an essential emergency equipment in the operating room. Defibrillation is one of the most important steps in cardiopulmonary resuscitation. |
| Multi-parameter monitor | Medical clinical diagnosis provides important patient information. Through various functional modules, it can detect important parameters such as human ECG signals, heart rate, blood oxygen saturation, blood pressure, respiratory rate and body temperature in real time, and realize the supervision and alarm of each parameter. Information storage and transmission is an important device for monitoring patients. |
| Multi-function high-frequency electric knife | It can be connected to endoscope accessories and used in conjunction with endoscopes for surgery. It is suitable for various large, medium and small surgeries in departments such as general surgery, orthopedics, thoracic surgery, cardiology, gynecology, urology, anorectal surgery, neurosurgery, microsurgery, ENT, hand surgery, plastic surgery, and cosmetic surgery. |
| Multi-function power system | It is a multifunctional surgical power system, which is suitable for the field of surgical operations. |
| Desktop high-pressure sterilizer | Disinfection and Sterilization |
| Multi-function surgical flushing machine | Ion cutting, carbonization, radiofrequency monopolar low-temperature ablation, the treatment process is non-invasive, smoke-free, and bleeding-free. |
| Visual laryngoscope | Used for endotracheal intubation. |
| Blood recovery machine | Through the negative pressure absorption device, traumatic bleeding or intraoperative bleeding is collected into the blood reservoir, mixed with an appropriate amount of anticoagulant during the suction process, and separated out by a high-speed centrifugal blood recovery tank after multi-layer filtration. Waste liquid, broken cells and harmful components are diverted to the waste liquid bag, and blood cells are washed, purified and concentrated with physiological saline. Finally, the pure and concentrated blood cells are stored in the blood bag and returned to the patient. The blood recovery machine equipped with the operating vehicle has the advantages of convenient and rapid first aid for combat injuries and accidental first aid; high success rate for rescue of massive bleeding; no xenotransfusion reaction, few complications, etc. It is particularly suitable for traumatic surgical operations, such as large blood vessel injury, combat bleeding, liver and spleen rupture, and spinal trauma. Therefore, the blood recovery machine is a highlight in the configuration of the operating vehicle. |
| Fiber optic headlight | It provides white, xenon-like light that is at least 30% brighter than ordinary halogen lighting systems, allowing surgeons to see the surgical site very clearly. |
| Dual-channel injection pump | It has high timing accuracy, stable flow rate, small dosage, high precision, high efficiency and digitization; it is particularly suitable for infusing urgent and severe drugs such as sodium nitroprusside, dopamine and bacteriocin; it can alarm for abnormalities and blockages, and automatically stop the injection to ensure safety. |
| High-flow suction | Absorb pus, blood, phlegm and other viscous liquids in the human body cavity. |
| Surgical instrument package | Surgical instrument packages can be purchased according to the purchaser’s requirements. |
| Product name | CLH5200XSSZ6 surgical vehicle |
| Announcement batch | 370 |
| Product number | GBW370X3302 |
| Dimensions | 12000,11800,11400×2500,2550×3800,4000 |
| Rated load and curb weight | 20,000,199,352,036,000,000 |
| Front overhang/rear overhang | 1450/3175 |
| Axle load | 6750/13380 (two-axis group), 6870/13620 (two-axis group) |
| Maximum speed | 89,110 |
| Additional | Announcement of environmental protection |
| Chinese brand | Chengli Heavy Industry Brand |
| Total mass | 2,013,020,490 |
| Rated number of passengers in the cab | 2,3 |
| Approach/departure angle | 16/10 |
| Anti-lock braking system | Yes |
| Chassis brand | Shandeka brand |
| Chassis model | ZZ5266XXYN504GF1K |
| Number of axles | 3 |
| Wheelbase | 3875+1400,4275+1400,4575+1400,4975+1400,5375+1400,5775+1400,5975+1400, 4250+1400,4300+1400,4600+1400,5000+1400,5200+1400,5800+1400,6000+1400 |
| Number of tires | 10 |
| Tyre specifications | 11.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR,315/80R22.5 18PR,12.00R20 18PR |
| Front wheelbase | 19,982,035,206,520,200,000 |
| Rear wheelbase | 1850/1850,1880/1880,1870/1870 |
| Number of leaf springs | 2/-/-,3/-/-,3/1+-/1+-,2/1+-/1+-,11/-/-,-/-/-,4/-/- |
| Fuel type | Diesel |
| Based on standard | GB17691-2018 National VI |
Others
- Only chassis with wheelbase (mm) of 5975+1400, 5775+1400 and 5375+1400 are selected for modification. 2. The manufacturer/model of ABS system controller is: ZF Commercial Vehicle Systems (Qingdao) Co., Ltd./4460046300. 3. Install speed limiter, speed limit 89km/h. 4. The protective material is Q235B, the left and right side protection is skirt structure, the ground clearance is 250mm; the rear protection device is replaced by a special device (hydraulic lifting platform), the ground clearance is 370mm. 5. Special functions and device description: The car is equipped with ultrasonic cleaning machine, steam sterilizer, medical imaging equipment, operating table, operating shadowless lamp, oxygen cylinder, medical equipment cabinet and other equipment, mainly used for medical surgery and other functions. 6. Optional ordinary cab, semi-high roof cab, high roof cab with chassis; optional roof air conditioner, front lamps with chassis; optional vehicle appearance style. 7. This model can be equipped with ETC vehicle-mounted device. 8. The top of the car is closed and cannot be opened. 9. Optional vehicle appearance and interior. 10. Optional hydraulic tailgate, the horizontal length of the tailgate in the folded state is 300mm, and the weight of the tailgate is 550kg. 11. Optional rear protection style, optional rear lower protection device material: Q235B carbon steel, connection method: welding connection, rear protection section size (mm) (diameter): 120, ground clearance is 430mm.
